FB090 Bronze Bearing

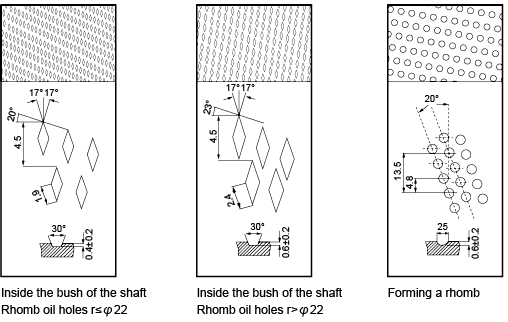

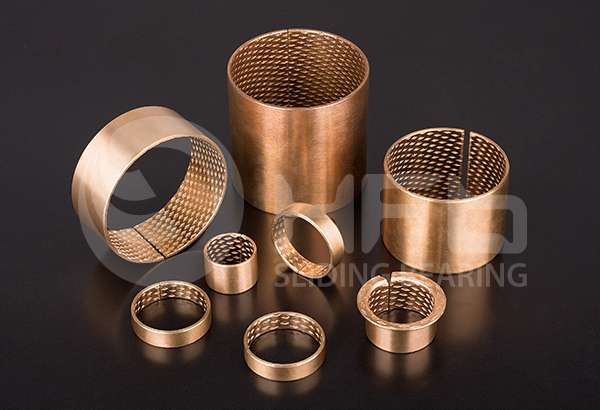

FB090 Bronze Bearing FB090 Bronze wrapped bushing, specially formulated high-density copper alloy strip base body surface may be requested by the user or hemispherical rolling diamond oil hole, oil sump. Having a high density, high carrying capacity, wear resistance, long life and other advantages, to replace the traditional casting of copper, and more compact, lower cost.

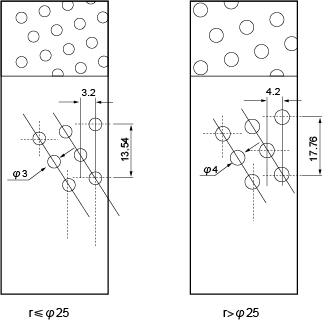

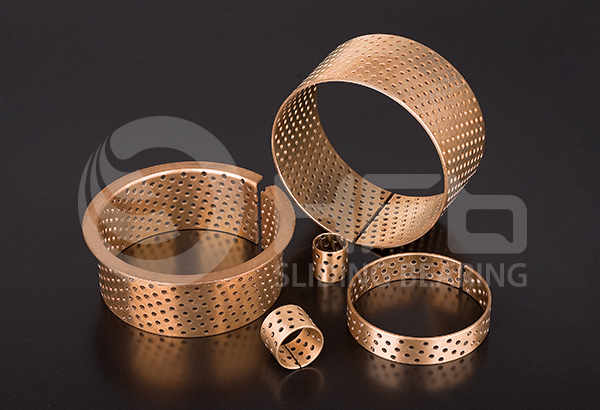

FB092 Bronze Bearing FB090 Bronze self-lubricating bearings used a kind of high density broze alloy of special compositions as base, surface of alloy is rolled diamond type of the oil indents or half ball oil indents, this kind of bearing has higher density, load capacity, well wearing performance, longer lifetime. It has been widely used in many fields, such as hoist machines, building machinery, machine tool industry and mining machinery.

Structural Materials

FB090	FB092
Using high-density bronze roll forming or spherical oil pockets, oil hole special internal surface to reduce the wear and tear to extend the use of time and good anti-corrosion function.	Using high-density bronze roll forming or spherical oil pockets, oil hole special internal surface to reduce the wear and tear to extend the use of time and good anti-corrosion function.

Advantage

1. To save a lot of copper, copper car to save time;
2.Compared with the automobile axle sleeve and rolling bearing, the weight is light and the cost is low;
3. Can be processed in the friction surface of a variety of holes, pits, storage of certain grease, extend the time to refuel the copper sets of 5 times;
4. Very high load capacity, especially for rough friction surface;
Available products: straight sets, thrust washers, flange bushings, bearings, skateboards, steel sleeve assemblies.

Technical Data

Standard Diameter	O.D.Size	Matching Seat Hole Housing Bore	I.D.Size	Matching Shaft Diameter
10~18	+0.065 +0.030	+0.018 0	+0.046 0	- 0.016 - 0.043
18~30	+0.075 +0.035	+0.021 0	+0.052 0	- 0.020 - 0.020
30~50	+0.085 +0.045	+0.025 0	+0.062 0	- 0.025 - 0.064
50~80	+0.100 +0.055	+0.030 0	+0.074 0	- 0.030 - 0.076
80~120	+0.120 +0.070	+0.035 0	+0.087 0	- 0.036 - 0.090
120~180	+0.170 +0.100	+0.400 0	+0.100 0	- 0.043 - 0.106
180~250	+0.210 +0.130	+0.046 0	+0.115 0	- 0.050 - 0.122
250~315	+0.260 +0.170	+0.052 0	+0.130 0	- 0.056 - 0.137
